Product Introduction

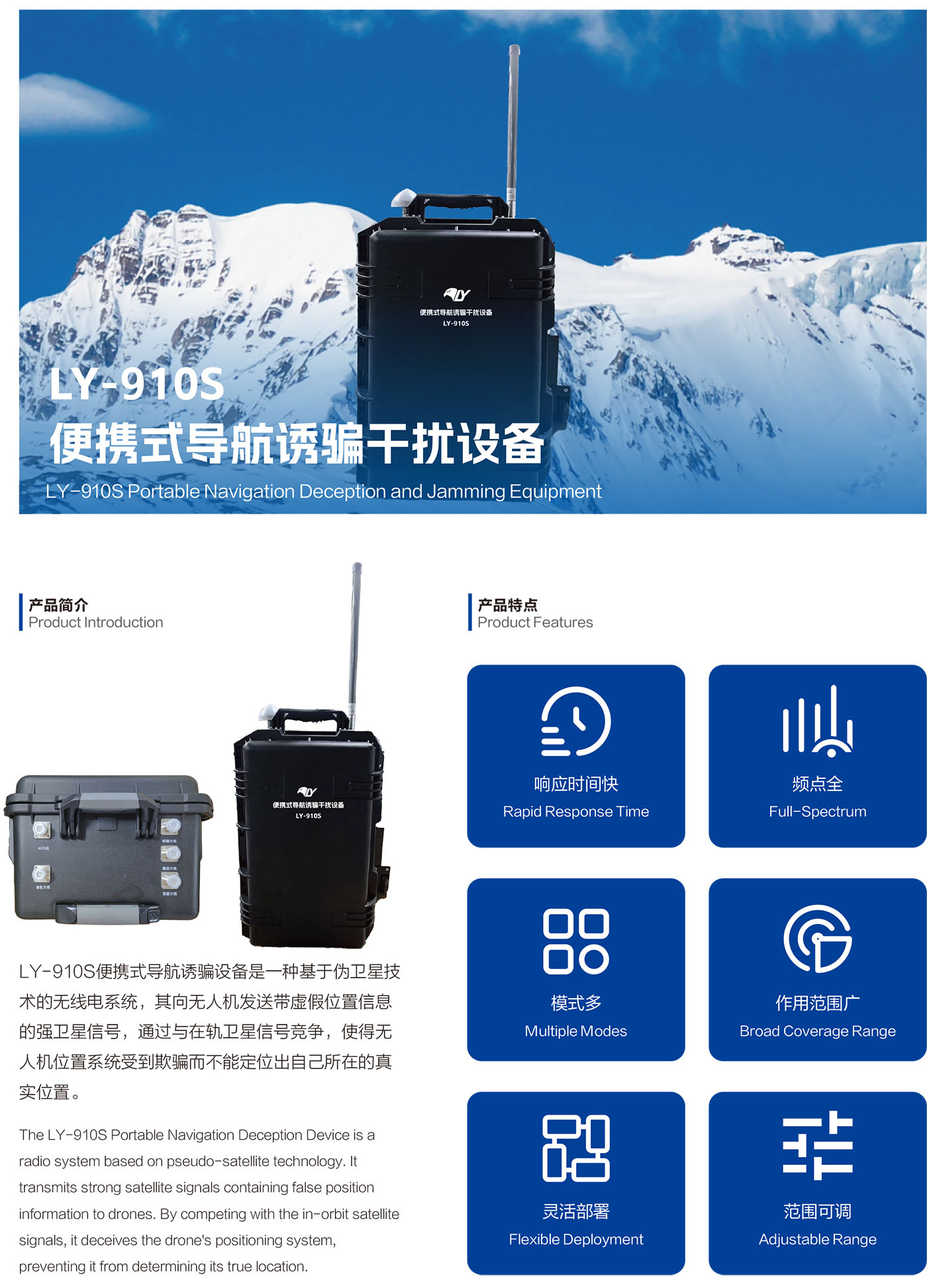

The LY-910S Portable Navigation Deception Device is a radio system based on pseudo-satellite technology. It transmits strong satellite signals containing false position information to drones. By competing with the in-orbit satellite signals, it deceives the drone's positioning system, preventing it from determining its true location.
Product Features
Application Scenarios
Performance Parameters
| Portable Navigation Deception and Jamming Equipment | |||
| Equipment Model | LY-910S | Occupied Bandwidth | GPS ≤ 2.046MHz GLO ≤ 8.34MHz |
| （99% of power) | GAL ≤ 24.552MHz | ||
| Output Signal Center Frequency | GPS GLO R1:1602MHz±4MHz GAL E1:1575.42MHz±12MHz | ||
| Active Defense Signal Synchronization | 3-min Time-Keeping Accuracy: 1μs | ||
| Frequency Tolerance | ＜±2*10-6 | Spurious Suppression at ±200 kHz | ＜-45dBm |
| Power | ＜ 10mW | Spurious Suppression at ±500 kHz | ＜-50dBm |
| Frequency Range | 1574.40MHz<GPS<1576.44MHz | Spurious Emissions | <-36dBm,30MHz- <-30dBm,1GHz- |
| （-80dBm/Hz@Frequency ) | |||
| Response Time | ＜10s | Effective Range | Effective Range: 500 m to 1000 m |
